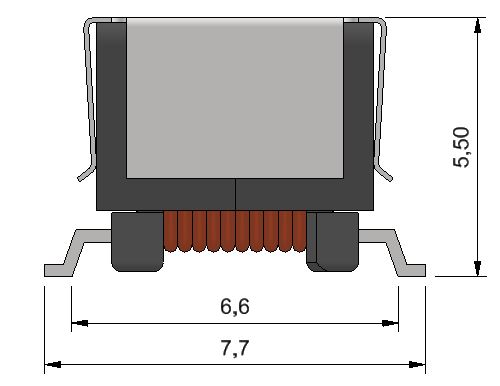

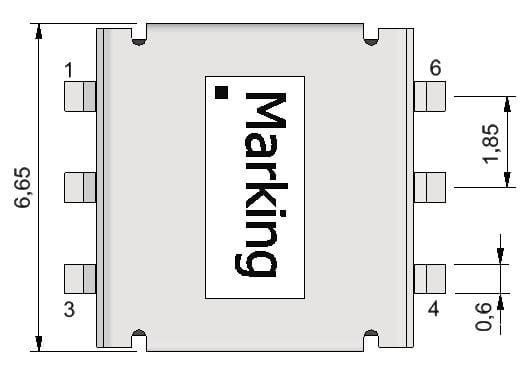

The 1489 EP5 Gate Drive Transformer is the smallest SMD part of its type.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. The product represented in this data sheet is ESA Qualified (QPL) and will be delivered with an extensive ESCC data package containing test results by serial number. Products are manufactured, tested and inspected by ESA certified staff.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. The product represented in this data sheet is ESA Qualified (QPL) and will be delivered with an extensive ESCC data package containing test results by serial number. Products are manufactured, tested and inspected by ESA certified staff.
ESCC320101301F14890001-1 Qualified part
Benefits
Quality Levels
Compact
Low weight
Surface mount
Up to 1000kHz
ESCC3201/013
MIL-STD-981 Class S
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
ESA Qualified (QPL)
ESCC Inspection
ESCC Magnetic Sheet
CertificateESCC Certificate
Test Data
X-Ray Inspection
Lot Acceptance Test
Lot Acceptance Test
Inductance Room Temp
±25%
Wire max. current
ESCC-Q-ST-30-11
Component specifications:
ESCC Part Number
Ratio
[N1:N2:N3]
Max
current
[A]
