Flux EE5 SMD Current Sense Transformer 1479
The 1479 EE5 SMD Current Sense Transformer is the smallest SMD part of its type.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. This 1:75 with split secondary (25/50) is an alternative to the 1:100 only available in MIL-STD-981 Class B.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. This 1:75 with split secondary (25/50) is an alternative to the 1:100 only available in MIL-STD-981 Class B.
ESCC320101301F14790102-1 Qualified part
Benefits
Quality Levels
Small footprint
Low mass
Surface mount
High primary current
ESCC3201/013
MIL-STD-981 Class S
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
ESA Qualified (QPL)
ESCC Inspection
ESCC Magnetic Sheet
ESCC Certificate
Test Data
X-Ray Inspection
Lot Acceptance Test
Qualification test
Wire
max. current
ESCC-Q-ST-30-11
Specifications
CS Max Current
[A]
[A]
5.6
CS DCR at 20° C
[mOhm]
[mOhm]
0.7

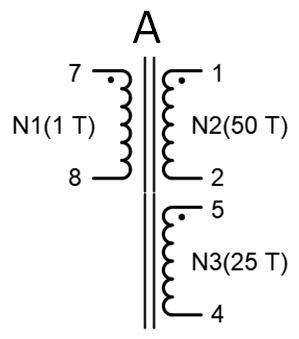

Ratio
[N1,N2]
[N1,N2]
1:25:50
Ratio
[N1,N2]
[N1,N2]
1:75
Max weight
[g]
[g]
1
Box measure
[mm3]
[mm3]
294
Flux EE5 SMD Current Sense Transformer 1479
The 1479 EE5 SMD Current Sense Transformer is the smallest SMD part of its type.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. This 1:75 with split secondary (25/50) is an alternative to the 1:100 only available in MIL-STD-981 Class B.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. This 1:75 with split secondary (25/50) is an alternative to the 1:100 only available in MIL-STD-981 Class B.
ESCC320101301F14790102-1 Qualified part
Benefits
Quality Levels
Small footprint
Low mass
Surface mount
High primary current
ESCC3201/013
MIL-STD-981 Class S
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
ESA Qualified (QPL)
ESCC Inspection
ESCC Magnetic Sheet
ESCC Certificate
Test Data
X-Ray Inspection
Lot Acceptance Test
Qualification test
Wire max. current
ESCC-Q-ST-30-11
Specifications
CS Max Current
[A]
[A]
5.6
CS DCR at 20° C
[mOhm]
[mOhm]
0.7
Ratio
[N1,N2]
[N1,N2]
1:25:50
Ratio
[N1,N2]
[N1,N2]
1:75
Max weight
[g]
[g]
1
Box measure
[mm3]
[mm3]
294
