Flux RM5 MIL-STD-1553 THM
The 1553 RM5 THM series BUS Transformer with QPL status is available in version with or without shield between Primary and Secondary windings. This version is without shield.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. The product represented in this data sheet is ESA Qualified (QPL) and will be delivered with an extensive ESCC data package containing test results by serial number. Products are manufactured, tested and inspected by ESA certified staff.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. The product represented in this data sheet is ESA Qualified (QPL) and will be delivered with an extensive ESCC data package containing test results by serial number. Products are manufactured, tested and inspected by ESA certified staff.
ESCC320101301F15531202-1 Qualified part
Benefits
Quality Levels
Small foorprint
Low weight
Through hole mount
Signal Transformer
ESCC3201/013
MIL-STD-981 Class S
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
ESA Qualified (QPL)
ESCC Inspection
ESCC Magnetic Sheet
ESCC Certificate
Test Data
X-Ray Inspection
Lot Acceptance Test
Qualification test
Inductance Room Temp
±25%
Inductance -55°C
to +125°C
±40%
Wire
max. current
ESCC-Q-ST-30-11

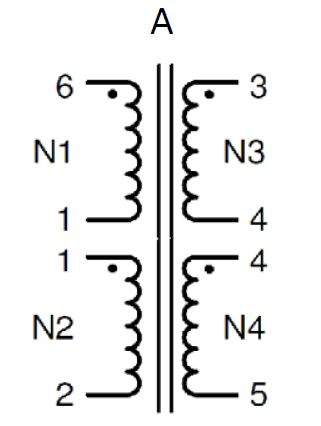

Specifications
Inductance
[μH]
[μH]
2406
Current
[A rms]
[A rms]
0.75
Max DCR 20° C
[Ohm]
[Ohm]
1.64
Max DCR 20° C
[Ohm]
[Ohm]
2.20
Ratio
1:1.4
Max weight
[g]
[g]
3.2
Box measure
[mm3]
[mm3]
1672
Flux RM5 MIL-STD-1553 THM
The 1553 RM5 THM series BUS Transformer with QPL status is available in version with or without shield between Primary and Secondary windings. This version is without shield.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. The product represented in this data sheet is ESA Qualified (QPL) and will be delivered with an extensive ESCC data package containing test results by serial number. Products are manufactured, tested and inspected by ESA certified staff.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. The product represented in this data sheet is ESA Qualified (QPL) and will be delivered with an extensive ESCC data package containing test results by serial number. Products are manufactured, tested and inspected by ESA certified staff.
ESCC320101301F15531202-1 Qualified part
Benefits
Quality Levels
Small foorprint
Low weight
Through hole mount
Signal Transformer
ESCC3201/013
MIL-STD-981 Class S
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
ESA Qualified (QPL)
ESCC Inspection
ESCC Magnetic Sheet
ESCC Certificate
Test Data
X-Ray Inspection
Lot Acceptance Test
Qualification test
Inductance Room Temp
±25%
Inductance -55°C
to +125°C
±40%
Wire max. current
ESCC-Q-ST-30-11
Specifications
Inductance
[μH]
[μH]
2406
Current
[A rms]
[A rms]
0.75
Max DCR 20° C
[Ohm]
[Ohm]
1.64
Max DCR 20° C
[Ohm]
[Ohm]
2.20
Ratio
1:1.4
Max weight
[g]
[g]
3.2
Box measure
[mm3]
[mm3]
1672
