Flux EE5 SMD Current Sense Transformer 1479
The 1479 EE5 SMD Current Sense Transformer is the smallest SMD part of its type.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. As an exeption the 1489 EE5 1:100 is available only in Space Grade as MIL-STD-981 Class B as it contains a wire smaller than Ø0.1mm and not allowed in ESCC3201 or MIL-STD-981 Class S.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. As an exeption the 1489 EE5 1:100 is available only in Space Grade as MIL-STD-981 Class B as it contains a wire smaller than Ø0.1mm and not allowed in ESCC3201 or MIL-STD-981 Class S.
14790101-1-B Qualified part
Benefits
Quality Levels

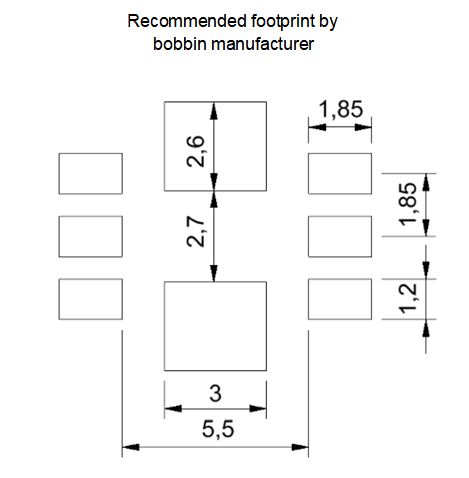

Small footprint
Low mass
Surface mount
High primary current
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
Certificate
Test Data
X-Ray Inspection
Lot Acceptance Test
Qualification test
Wire
max. current
ESCC-Q-ST-30-11
Specifications
CS Max Current
[A]
[A]
5.6
CS DCR at 20° C
[mOhm]
[mOhm]
0.7

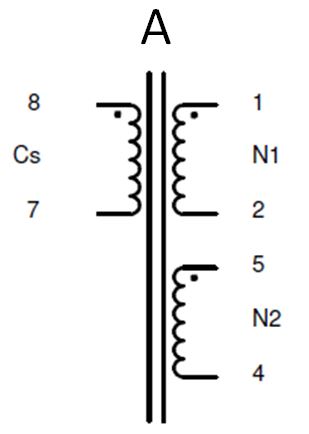

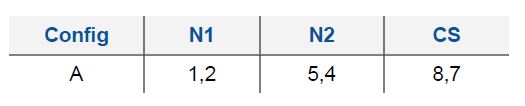

Ratio
[N1,N2]
[N1,N2]
1:50:50
Ratio
[N1,N2]
[N1,N2]
1:100
Max weight
[g]
[g]
1
Box measure
[mm3]
[mm3]
294
Flux EE5 SMD Current Sense Transformer 1479
The 1479 EE5 SMD Current Sense Transformer is the smallest SMD part of its type.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. As an exeption the 1489 EE5 1:100 is available only in Space Grade as MIL-STD-981 Class B as it contains a wire smaller than Ø0.1mm and not allowed in ESCC3201 or MIL-STD-981 Class S.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. As an exeption the 1489 EE5 1:100 is available only in Space Grade as MIL-STD-981 Class B as it contains a wire smaller than Ø0.1mm and not allowed in ESCC3201 or MIL-STD-981 Class S.
14790101-1-B Qualified part
Benefits
Quality Levels
Small footprint
Low mass
Surface mount
High primary current
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
Certificate
Test Data
X-Ray Inspection
Lot Acceptance Test
Qualification test
Wire max. current
ESCC-Q-ST-30-11
Specifications
CS Max Current
[A]
[A]
5.6
CS DCR at 20° C
[mOhm]
[mOhm]
0.7
Ratio
[N1,N2]
[N1,N2]
1:50:50
Ratio
[N1,N2]
[N1,N2]
1:100
Max weight
[g]
[g]
1
Box measure
[mm3]
[mm3]
294
